Zoeller 105-0001 Model 105 Drain Pump 0.30 HP, 115V, 1PH Black


The 3/10 HP Model 105 Drain Pump works for many applications where a gravity drain is not accessible or is cost prohibitive. It is ideal for installing a sink drain in a kitchen or under a utility sink in unfinished areas such as basements, garages, or warehouses. Avoid breaking concrete and pump

  • 462.00$462.00
  • 123 in Stock
  • Free Shipping on order over $49.99
  • Order this product before 4pm EST and it will ship today.*
  • Brand: Zoeller
  • Model # 105-0001

Qty

Share by Email Add to Houzz Tweet Pin This Share

The Model 105 Drain Pump is an ideal choice for standard drain pump applications when a gravity drain is not accessible. The drain pump eliminates the need to break concrete to install a sink drain. It is often used when adding a kitchen or wet bar in an unfinished basement. It allows you to pump the unwanted water to any discharge point desired. Our drain pump is also used to handle the wastewater from coffee bars, utility sinks, wet bar sinks, ice machine discharge, dishwashers, air conditioning condensate, and much more. Our popular Model 105 Drain Pump is constructed with a polypropylene, corrosion-resistant basin and comes with 3/10 HP submersible sump pump capable of passing solids up to 1/2-inch. For added convenience, the check valve is included. The discharge, vent, and inlet openings are already built into the basin so installation is quick and straight forward. The pump can pass laundry lint, making this drain pump model ideal for laundry tray pumps. All pumps utilize a non-clogging vortex impeller, a reliable system that reduces the chances of clogging and backups. Peace of mind right-out-of-the-box! Less hassle. Less mess.

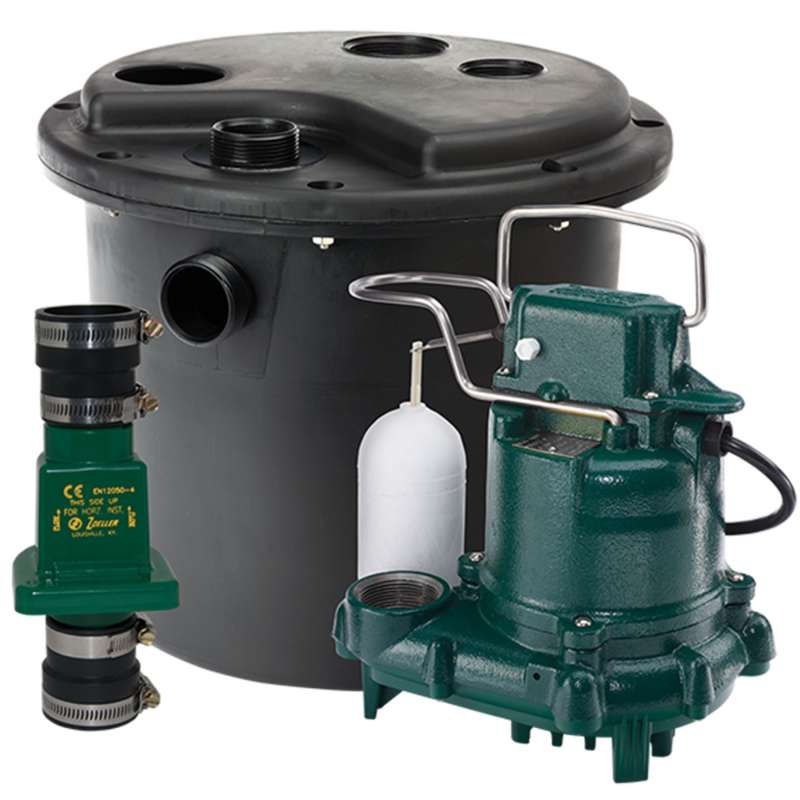

  • System includes automatic 3/10 HP automatic pump, tank assembly, and check valve
  • Non-clogging vortex impeller capable of passing 1/2" spherical solids reducing the potential for clogs
  • 11-3/4" x 12-1/2" basin with a small footprint so it is easily installed in a base cabinet under the sink, beneath a utility sink, or in any compact area
  • Cover includes: 1-1/2" discharge, 1-1/2" inlet, 2" NPT vent and cord seal opening
  • 3-year limited warranty on pump provides you with peace of mind right out of the box
Guides & Documents Spec Sheet Installation Guide Catalog / Brochure Product Information Sheet
Engineered Thermoplastic; Cap Material Base Material: Engineered Thermoplastic; Cap Material: Cast Iron; Gasket: Neoprene; Hardware: Stainless Steel; Impeller Material: Engineered Plastic; Motor Shaft: AISI 1215 cold rolled steel; Pump Body Material: Cast Iron
Bearing - Lower Sleeve bearing
Bearing - Upper Sleeve bearing
Brand Zoeller
Connection Size 1-1/2
Cord Length 9' (3 m)
Cord Type UL listed, 3-wire, grounded plug
CSA Certified No
Discharge 1-1/2" NPT
FM Approved No
Horsepower 0.30
Impeller Material Engineered Plastic
Impeller Type Vortex
Maximum Feet Of Head 19.25''
Motor Protection Auto reset thermal overload
Pump Body Material Cast Iron
Solids Handling 1/2" (12 mm) spherical solids
Product Type Drain Pump
Color Black
Color/Finish Family Blacks
Connection Type NPT
GPM 43
RPM 1550
Voltage 115
