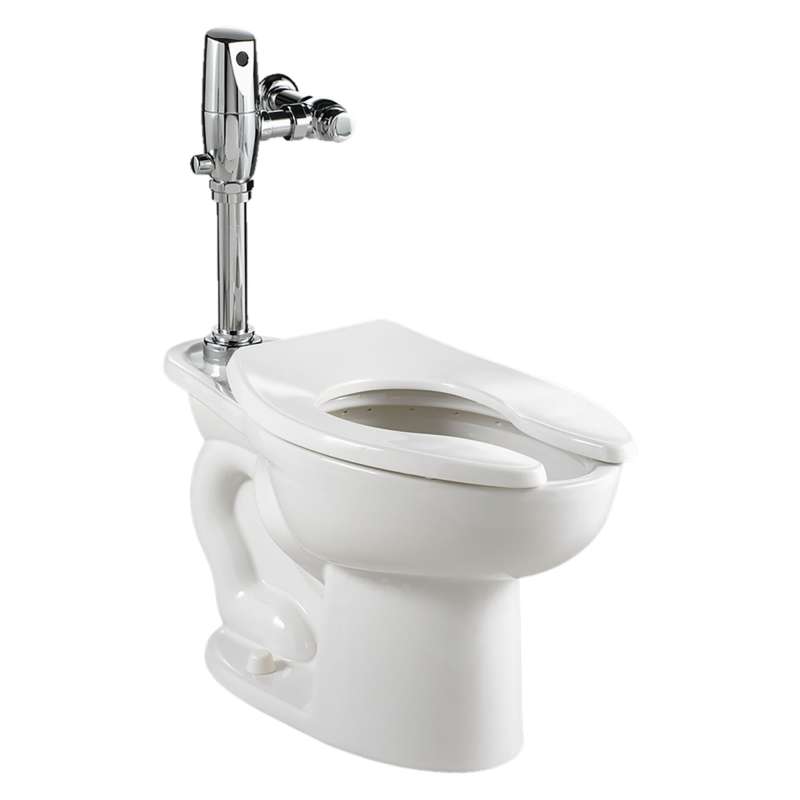

3043660.020 Madera 1.6 gpf and 6.0 Lpf Chair Height Toilet System with Touchless Selectronic Piston Flush Valve, White Madera

3043660.020 Madera 1.6 gpf and 6.0 Lpf Chair Height Toilet System with Touchless Selectronic Piston Flush Valve, White

Qty

Add to Wish List

compare

1.6 Gpf high-efficiency flushometer toilet system system map score.

Maximum 1,000 gram MaP Score.
Elongated floor mount flushometer bowl, top spud, less seat.
16-1/2-in (419 mm) rim height for accessible application.
Static weight load of 2,500 lbs (1,134 kg).
Touchless piston-operated flush valve.
Manual piston-operated flush valve.
Exclusive DynaClean® self-cleaning wiper spring technology.
Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on.
Fully mechanical manual override can operate without power.

Guides & Documents	Spec Sheet Installation PDF
Brand	American Standard
CAD Drawings	Yes
Code Compliance	Yes
Product Type	Toilet System
Collection	Madera
Color	White
Width (in)	14.00
Length (in)	28.25
Height (in)	16.50
Material	Vitreous china
Shape	Elongated
Weight (lb)	70.00
Warranty	5 Year Limited Warranty
Ada Compliant	Yes
ANSI Approved	Yes
Anti-microbial	Yes
ASME Approved	Yes
Auto Flush	Yes
Auto Open/Close	No
Bowl Height (in)	16.50
Bowl Height With Seat (in)	17.75
Bowl Shape	Elongated
Comfort Height	16.5
Concealed Trapway	No
CSA Approved	Yes
CSA Code	B45.1-08
Drain Assembly Included	Yes
Dual Flush	No
Eco Friendly	Yes
Everclean	N/A
Faucet Included	No
Flush Lever Included	No
Flush Rate (GPF)	1.6
Flush Technology	Selectronic Piston Flush
Flush Type	Touchless
Flush Valve Size (in)	2.88
Glazed Trapway	Yes
High Efficiency	Yes
Installation	wall-hung
Powerwash	Yes
Residential/Commercial	Both
Series	Madera
Spud Size (in)	1.5
Supply Lines Included	No
Trap Way Size (in)	2.13
Valve Included	Yes
Valve Type	Touchless Selectronic Piston Flush
Water Efficient	Yes
Water Surface Area (in)	10 x 12
Watersense	Yes
