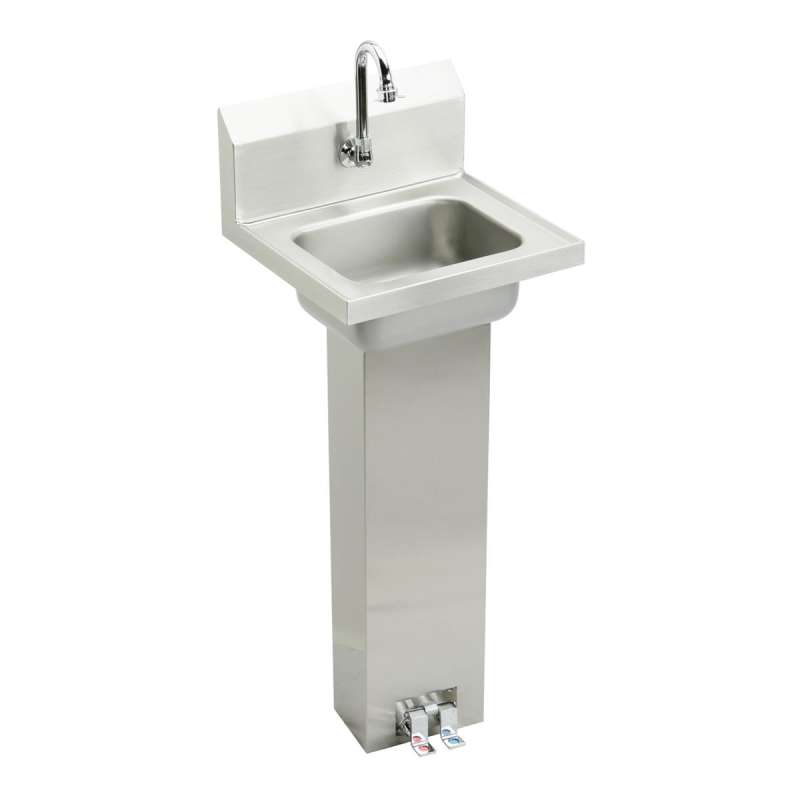

Stainless Steel 16-3/4" X 15-1/2" X 13" Single Bowl Wall Hung Handwash Sink W/Foot Control+Spout+Drain+P-Trap, CHSP1716C Buffed Satin


Stainless Steel 16-3/4" X 15-1/2" X 13" Single Bowl Wall Hung Handwash Sink W/Foot Control+Spout+Drain+P-Trap, CHSP1716C

  • 2508.00$2,508.00
  • Only 1 in Stock
  • Free Shipping on order over $49.99
  • Order this product before 4pm EST and it will ship today.*
  • Brand: Elkay
  • Model # CHSP1716C

Qty

Share by Email Add to Houzz Tweet Pin This Share

Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.

  • Type 304 stainless steel basin
  • 1-3/4" radius coved corners
  • 7" high, full-length backsplash with 45-degree angle sloped top
  • Exposed surfaces have a brushed finish
  • Easy to clean and sanitize
  • 2" drain opening
  • 36" floor to rim
  • Stainless steel pedestal

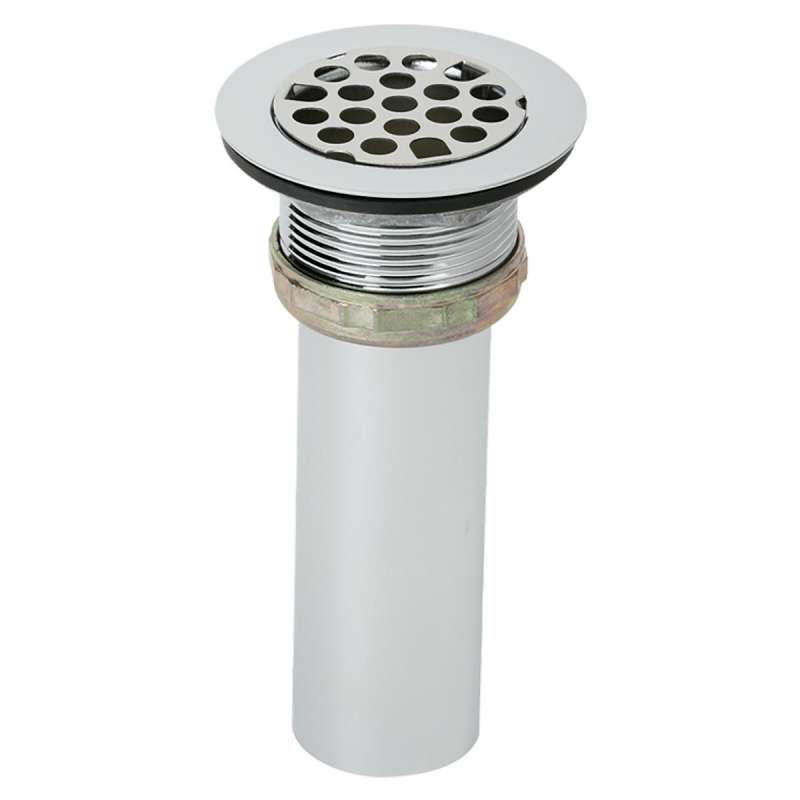

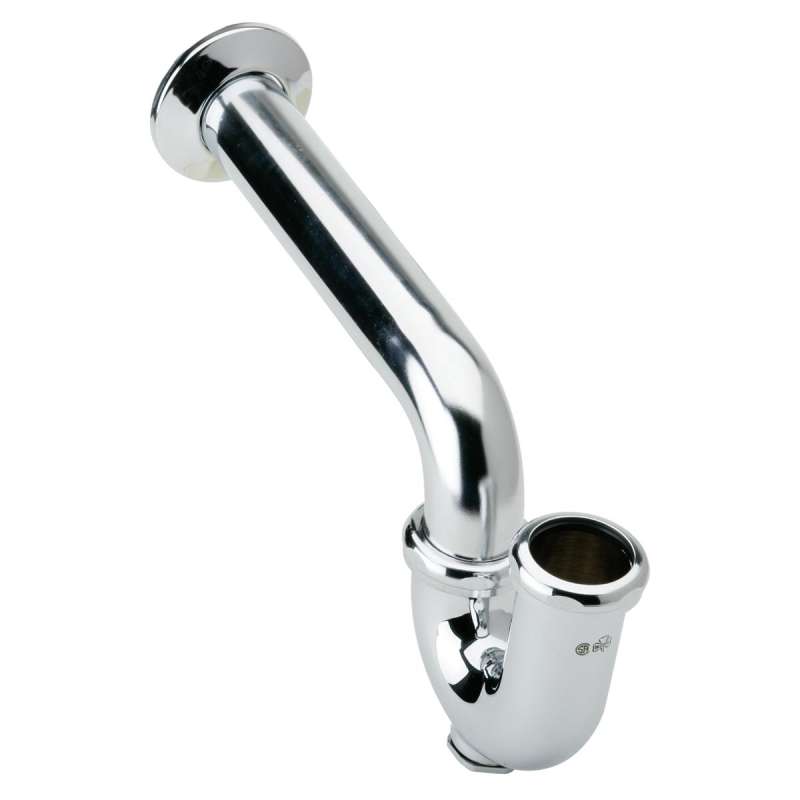

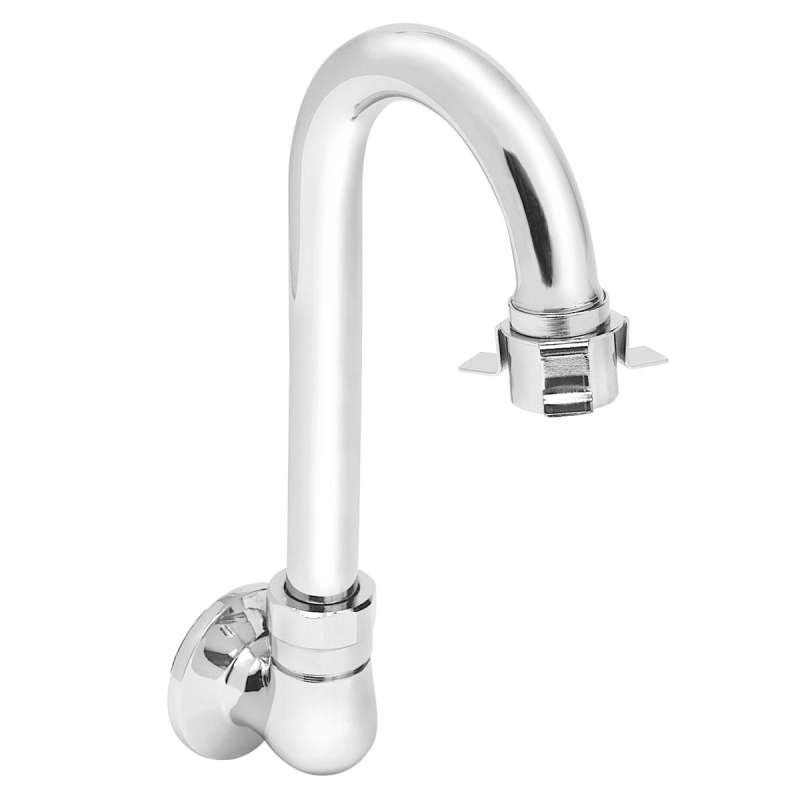

  • Kit includes CHSP1716 sink, LK399C foot control, LK395A spout, LK8 grid drain fitting and LK500 P-trap
ASME Standards ASME A112.19.3, ASME A112.18.1, ASME A112.18.2
Backsplash Height 8
Bowl Split Single Bowl
Brand Elkay
CSA Standards CSA B45.4; CSA B125.1; CSA B125.2
Drain Placement Bowl 1 Center Center
Drain Size Bowl 1 2
Drainboard Type No drainboard
Length Bowl 1 13.625
NPCC Yes
NSF Standard 372 Yes
NSF Standard 61 Yes
Number Faucet Holes Required 1
Prop 65 Warning Yes
Shape Bowl 1 Rectangular
Sink Depth 13
Specifications Spec Sheet
Installation
Warranty
Spout Height 8
Spout Reach 3.5
Width Bowl 1 9.75
Product Type Cis
Collection Elkay®
Color Buffed Satin
Width (in) 15.5
Length (in) 17
Height (in) 11.875
Material Stainless Steel
Weight (lb) 25
Ada Compliant No
Application Scrub + Handwash
Gauge 18
Installation Scullery
Lead Law Compliant Yes
Number of Bowls 1
UPC Listed cUPC
Watersense No
