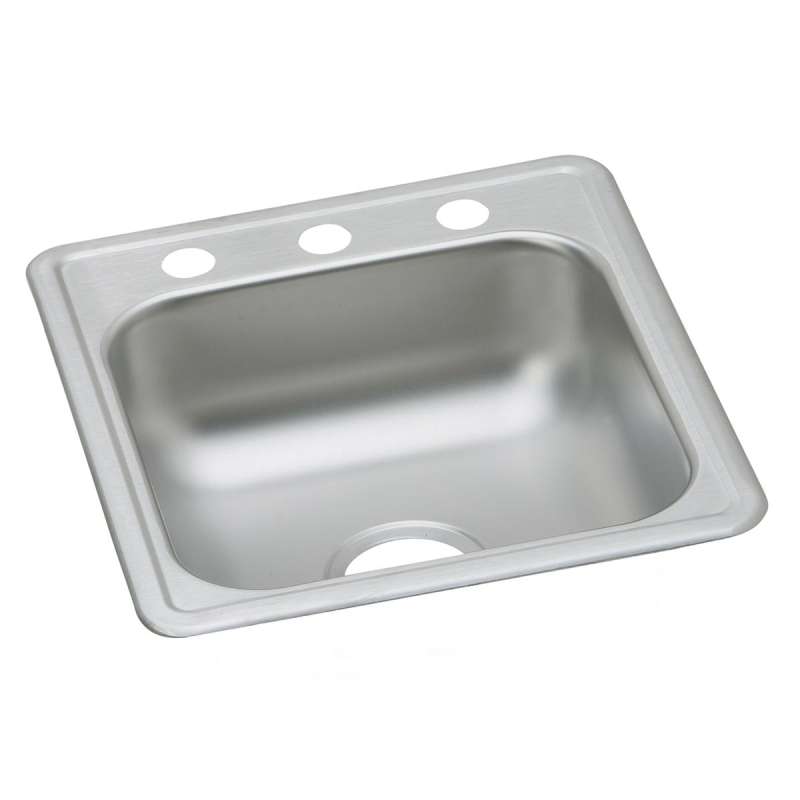

Dayton Stainless Steel 17" X 19" X 6-1/8" 3-Hole Single Bowl Drop-In Bar Sink, D117193 Satin


Dayton Stainless Steel 17" X 19" X 6-1/8" 3-Hole Single Bowl Drop-In Bar Sink, D117193

  • 236.00$236.00
  • Only 4 in Stock
  • Free Shipping on order over $49.99
  • Order this product before 4pm EST and it will ship today.*
  • Brand: Elkay
  • Model # D117193

Qty

Share by Email Add to Houzz Tweet Pin This Share

Dayton offers a complete line of stainless steel sinks, along with drains and accessories. From drop-in installation to undermount and dual mount styles, Dayton sinks come in an array of sizes and bowl configurations. You'll also find packages to meet every budget. Our products are backed with the quality assurance of domestic manufacturing and great customer service.

  • ADA COMPLIANT: Product is ADA compliant when properly installed
  • DROP-IN INSTALLATION: Sink is installed above the countertop, an ideal choice if you are not replacing the counter; has a beautifully finished rim

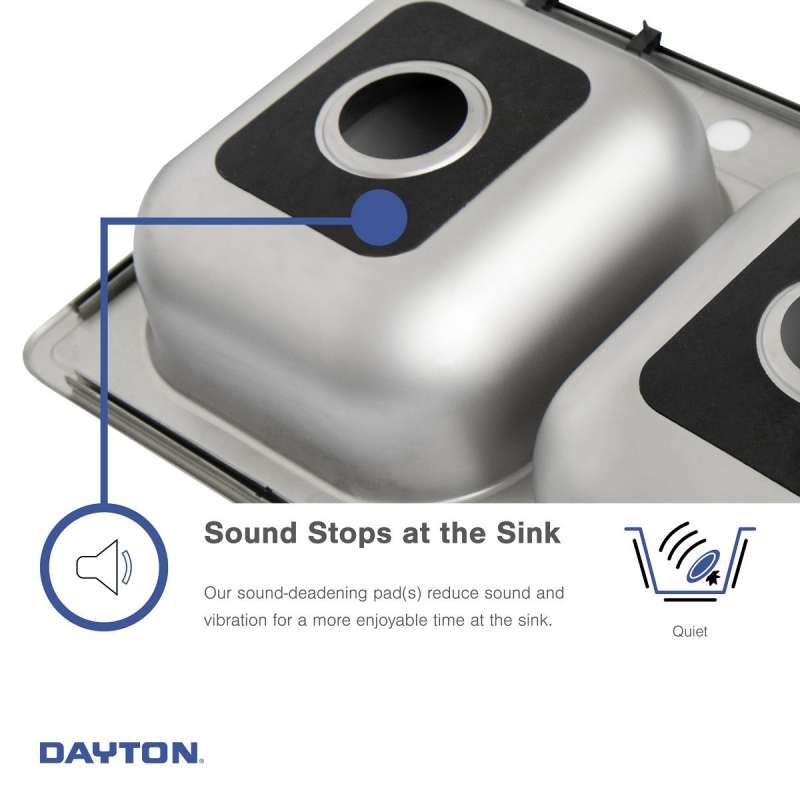

  • QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink

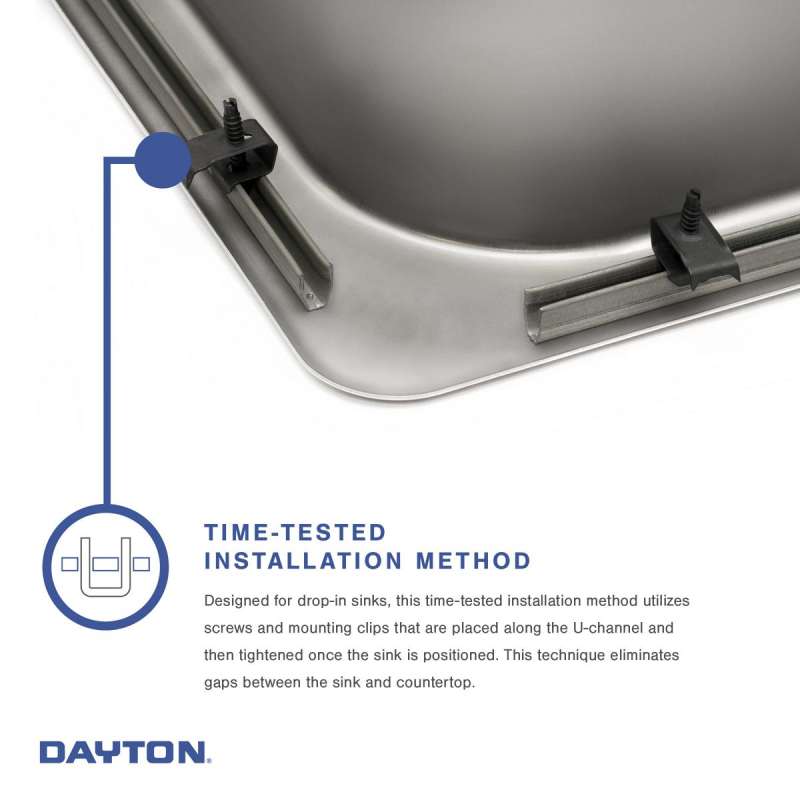

  • U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation means less time under the sink for an easier install
  • MADE IN THE USA: This Elkay product is proudly made in the USA
  • DRAIN OPENING: Sink drain opening measures 3-1/2"
  • CABINET SIZE: Minimum cabinet size for this sink is 21"
  • 22-GAUGE STAINLESS STEEL: Commercial grade 22-gauge thickness and 300 Series stainless steel for everyday use
ASME Standards ASME A112.19.3
Brand Elkay
Countertop Cutout Dimensions 16-3/8" x 18-3/8" (416mm x 467mm) with 1-1/2" (38mm) corner radius
CSA Standards CSA B45.4
Drain Placement Bowl 1 Center Center
Drain Size Bowl 1 3.5
Drainboard Type No drainboard
Gallons To Overflow 10.4
Length Bowl 1 14
Minimum Cabinet Size Inches 21
NPCC Yes
Number Faucet Holes Required 3
Prop 65 Warning Yes
Shape Bowl 1 Square
Sink Depth 6.1875
Sound Deadening Bottom only pads
Specifications Spec Sheet
Installation
Warranty
Width Bowl 1 14
Product Type Sink
Collection Dayton®
Color Satin
Width (in) 19
Length (in) 17
Height (in) 6.1875
Material Stainless Steel
Weight (lb) 5.5
Ada Compliant Yes
Application Residential/MultiFamily
Gauge 22
Installation Drop-in
Number of Bowls 1
UPC Listed cUPC
