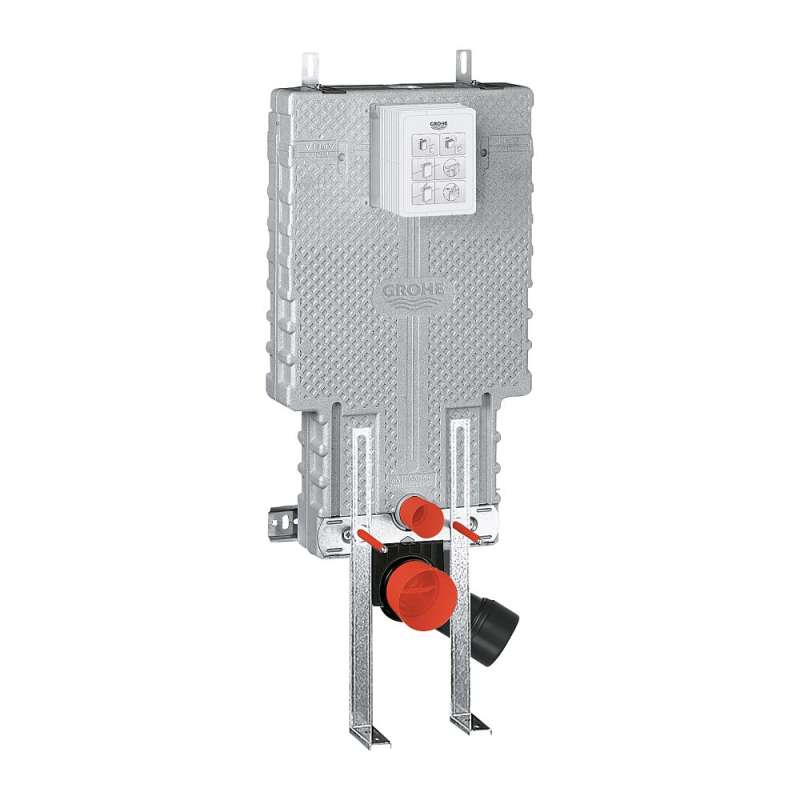

Flushing cistern GD 2, 6 - 9 l, containing following features: Inlet and outlet connecting set. Adjustment from factory (1.6 gal and .8 gal). Pneumatic discharge valve offering: 3 modes of operation: dual flush or start/stop or single flush. Water supply from left, right, back, or top. Low noise (group I acc. to/German Noise Specification). Insulated against condensation. 1/2" water supply connection, includes integrated angle valve with push-fit flexible hose union. No tools required for the installation of the inspection shaft incl. protection during construction phase. Preparation for shower toilets with additional accessory 40 899 000 (sold separately). For mounting of small flush plates please order revision shaft 40 911 000 (sold separately)

• Flushing cistern (GD 2)
• Sound-insulating EPS module for masonry
• 32-5/8"x 18-1/2"x 5-1/8"
• Bar adaptors for modular mounting
• Wall bar with mounting accessories for single installation
• WC mounting screws (2x)
• Distance of mounting screws (7" - 9")
• Mounting kit for ceramic
• Outlet bend diameter 90 mm,
• Reducer diameter 90/110 mm
• Depth adjustable
